Meike FF Prime Cine Lens Kit of 4 Lenses for Full Frame Cinema Cameras with PL/EF/E/EFR (with 16mm Lens)

Note ：This kit has a FREE lens case, no need to add the lens case to the cart

Optional Kit:

16mmT2.5，24mmT2.1，35mmT2.1，50mmT2.1，85mmT2.1,

105mmT2.1，135mmT2.4

Meike Adapter for Cine Lens

• PL to Sony-E mount Camera
• PL to Canon RF-mount Camera

Compatible:

•It is available in either PL, Canon EF, Canon RF, Sony E mounts.
•Canon C700 ,C500II, C500 Mark II, C300 Mark III, C300 Mark II, C200, C70 ,C100 Mark II Z Cam E2-F6 E2-F8 E2-S6
•Sony VENICE
•Alexa LF
•Z Cam E2-F6
•Mavo LF
•Sony FX3 FX6,FX9
•All full-frame Sony, Panasonic. Canon mirrorless Cameras
•All Super 35/ APS-C sensors Cameras

Highlights:

1. 8K and clean and sharp image quality, suitable for a wide range of camera and scene requirements T2.1 to value aperture, high light transmittance and large-diameter, realise shooting bright pictures in low-light environments
2. Nano-wide angle and multi-layer coating to suppress ghosting and glare
3. APO -level chromatic aberration control
4. Little to no breathing effect during focusing to achieve a stable image
5. Near-zero distortion control to prevent picture distortion and halo
6. 11-blade aperture can shoot near-circular natural and soft blur images and diffuse starburst Uniform colour balance
7. Uniform gear position, saving time to adjust accessories
8. 330 degree focus rotation and soft damping, precise focusing
9. The metric and imperial dual focal length scale with fluorescent paint is used to improve the visibility at night or dim environment.
10. Full metal body parts, more durable

-------------------------------------------------------------------------------

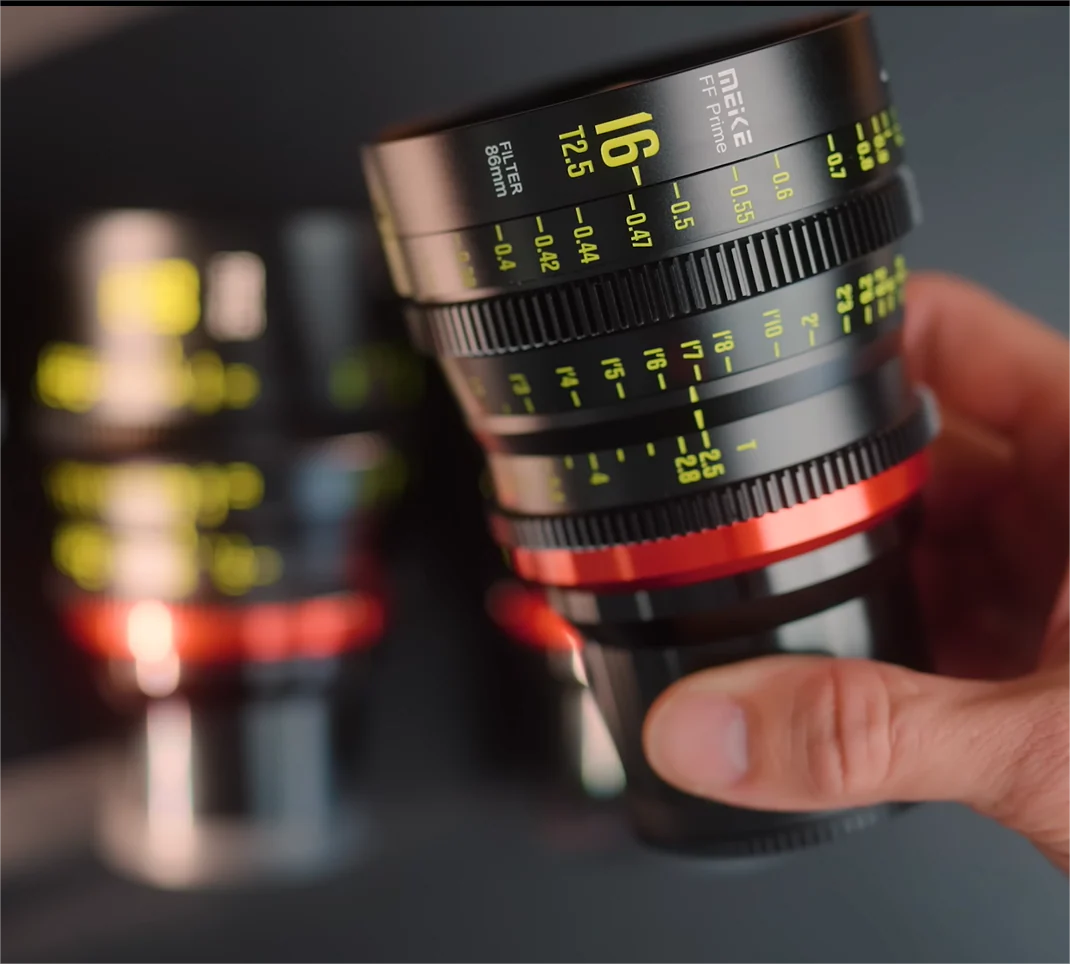

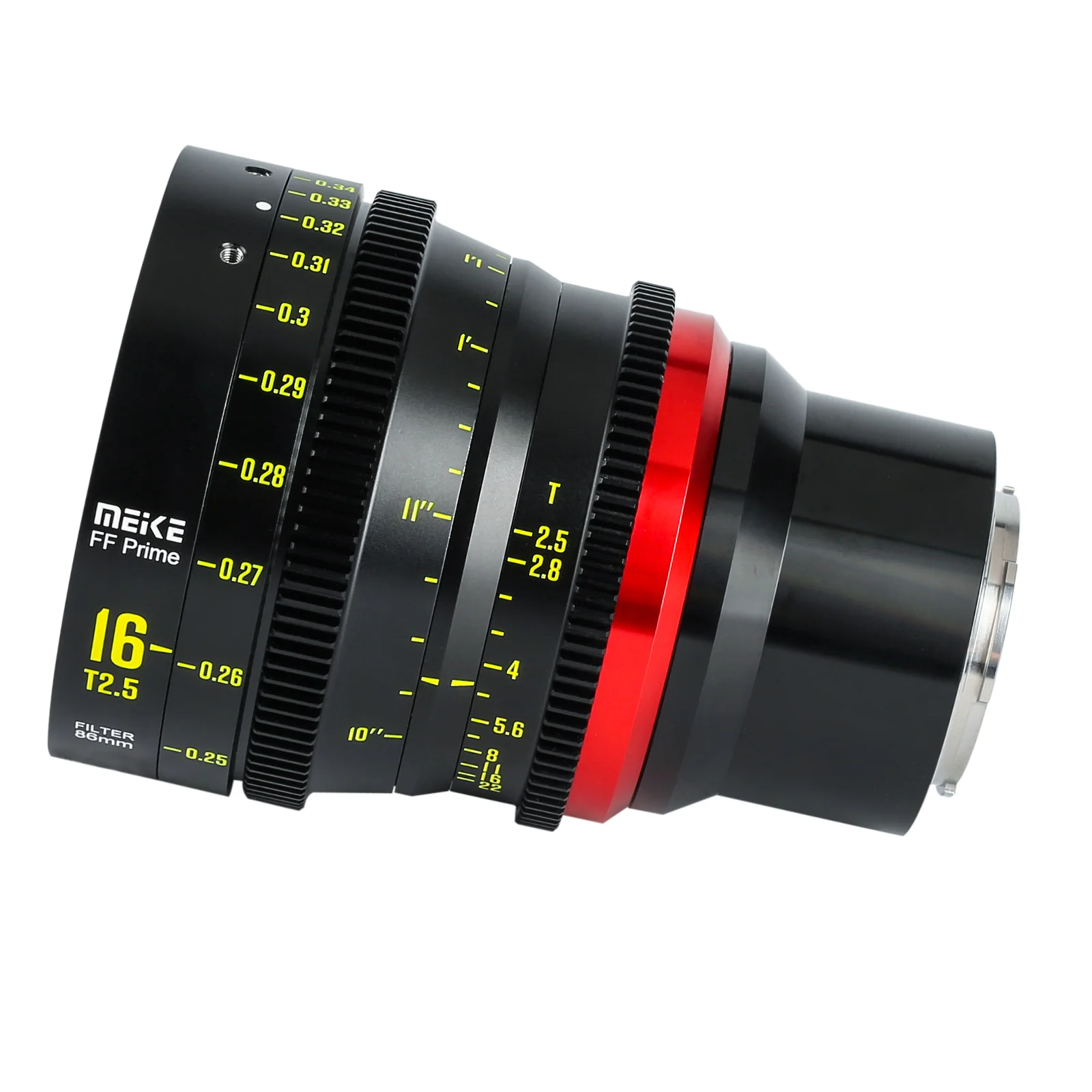

MK-Full Frame 16mm T2.5   Specifications:

Lens Mount:	PL/EF/RF/E
Min Focal Dist:	25cm
Filter Thread:	ø86
Outer Diameter：	90mm
Image Circle:	45mm
Structure:	16 Elements in 11 Groups
Focal Length:	16mm
Aperture Range:	T2.5-T22
Iris Blades:	10
Gear Mod:	M0.8
Focus Rotation:	330 Degree
Dimensions (Ø x L): PL:	ø90 ×  88.8
EF(Canon):	ø90 × 96.8
RF(Canon):	ø90 × 120.8
E(Sony):	ø90 × 122.8
Weight:	812~890g

FOV:

on FF cameras:	on APS-C camera：
Diagonal:107.3°                                     Horizontal: 96°                        Vertical: 72.2°	Diagonal:81.5°                                      Horizontal: 70.8°                        Vertical: 50.4°



MK-Full Frame 16mm T2.5   Sample Pictures:

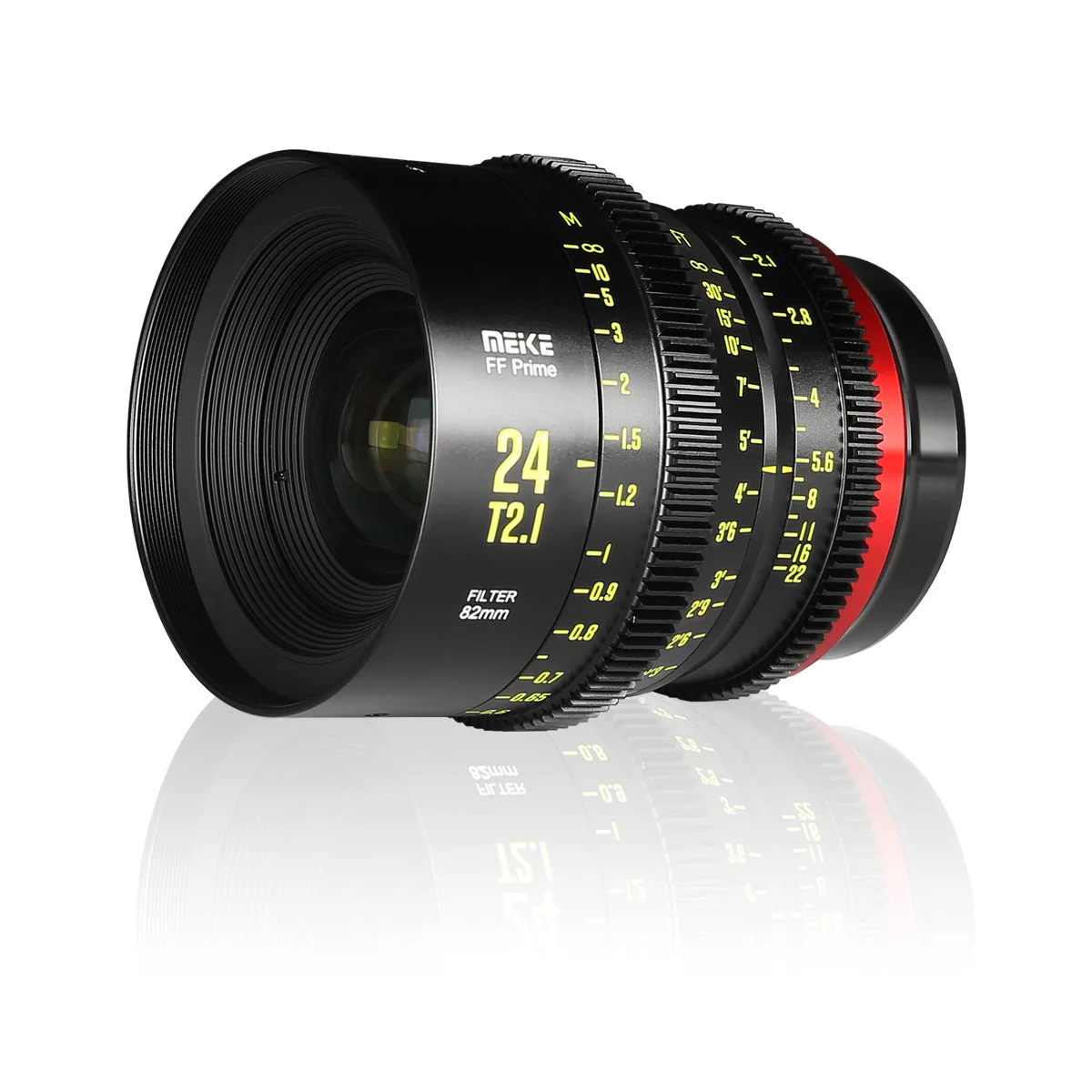

MK-Full Frame 24mm T2.1   Specifications:

Lens Mount:	PL/EF/RF/E
Min Focal Dist:	30cm
Filter Thread:	ø82
Outer Diameter：	85mm
Image Circle:	45mm
Structure:	14 Elements in 9 Groups
Focal Length:	24mm
Aperture Range:	T2.1-T22
Iris Blades:	11
Gear Mod:	M0.8
Focus Rotation:	330 Degree
Dimensions (Ø x L): PL:	ø89.6 × 101.9
EF(Canon):	ø89.6 ×109.9
RF(Canon):	ø89.6 × 133.9
E(Sony):	ø89.6 × 135.9
Weight:	963~1034g

FOV:

on FF cameras:	on APS-C camera：
Diagonal:83.4°                                     Horizontal: 72.6°                        Vertical: 52°	Diagonal:60.1°                                      Horizontal: 51.3°                        Vertical: 35.1°



MK-Full Frame 24mm T2.1   Sample Pictures:

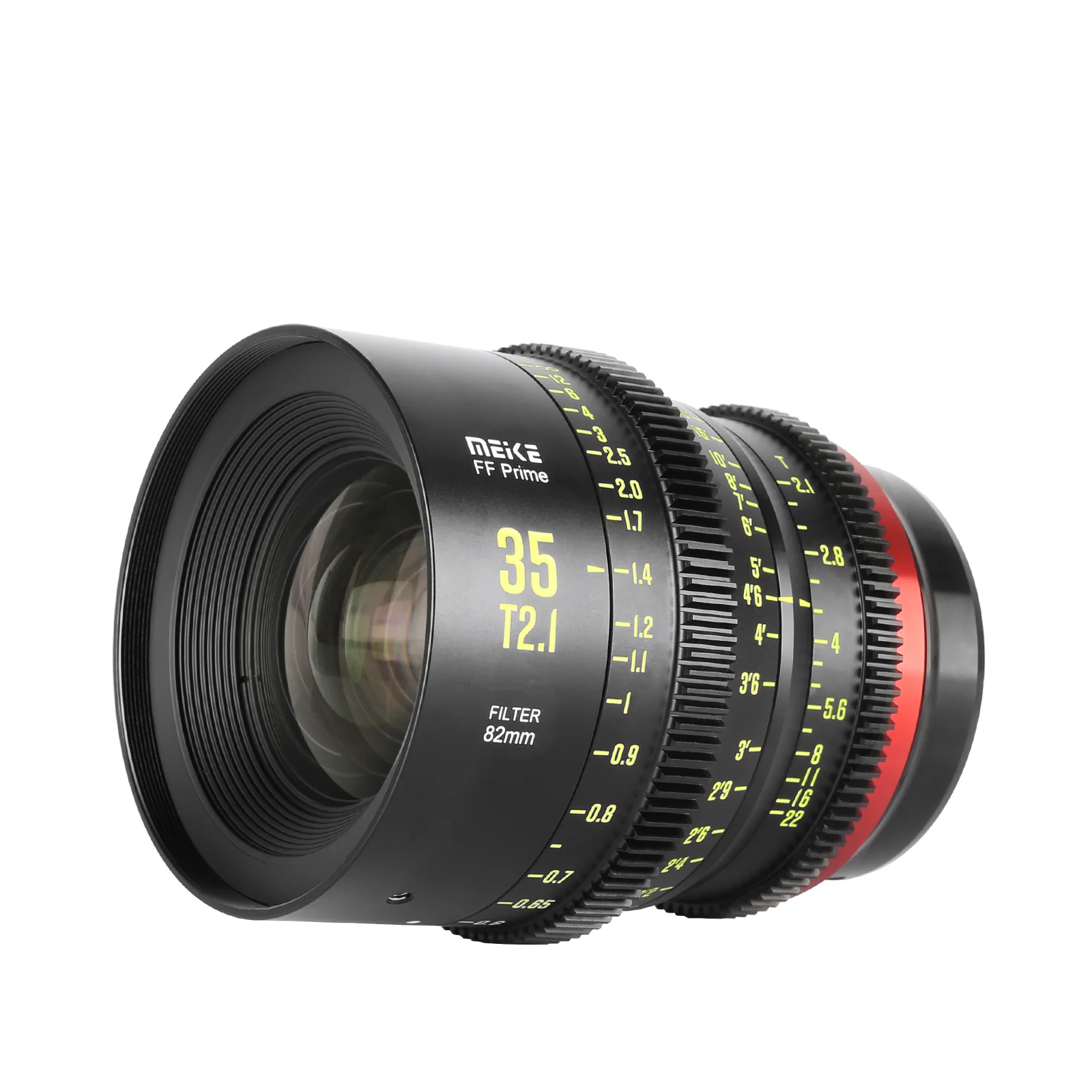

MK-Full Frame 35mm T2.1   Specifications:

Lens Mount:	PL/EF/RF/E
Min Focal Dist:	33cm
Filter Thread:	ø82
Outer Diameter：	85mm
Image Circle:	45mm
Structure:	14 Elements in 9 Groups
Focal Length:	35mm
Aperture Range:	T2.1-T22
Iris Blades:	11
Gear Mod:	M0.8
Focus Rotation:	330 Degree
Dimensions (Ø x L): PL:	ø89.6 × 102.5
EF(Canon):	ø85 × 110.5
RF(Canon):	ø89.6 ×134.5
E(Sony):	ø89.6 × 136.5
Weight:	1108~1182g

FOV:

on FF cameras:	on APS-C camera：
Diagonal:63.5°                                     Horizontal: 52°                        Vertical: 40°	Diagonal:43.2°                                      Horizontal: 34.9°                        Vertical: 26°



MK-Full Frame 35mm T2.1   Sample Pictures:

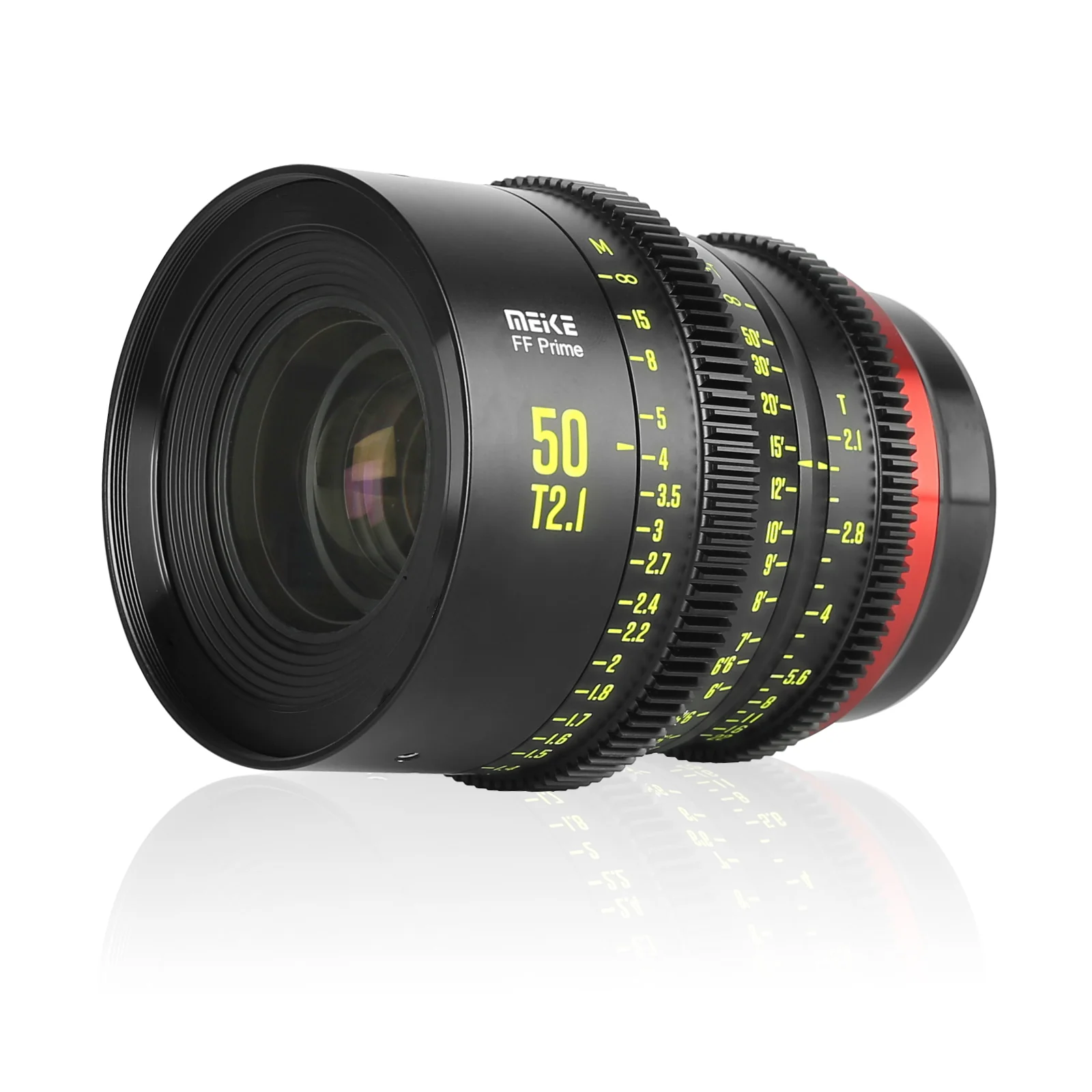

MK-Full Frame 50mm T2.1   Specifications:

Lens Mount:	PL/EF/RF/E/Z
Min Focal Dist:	60cm
Filter Thread:	ø82
Outer Diameter：	85mm
Structure:	12 Elements in 8 Groups
Focal Length:	50mm
Aperture Range:	T2.1-T22
Iris Blades:	11
Gear Mod:	M0.8
Focus Rotation:	330 Degree
Dimensions (Ø x L): PL:	ø89.6 × 102.5mm
EF(Canon):	ø89.6 ×110.5mm
RF(Canon):	ø89.6 ×134.5mm
E(Sony):	ø89.6 ×136.5mm
Weight:	1099-1172g

FOV:

on FF cameras:	on APS-C camera：
Diagonal:46.4°                                      Horizontal: 39.1°                       Vertical: 26.5°	Diagonal:29.6°                                      Horizontal: 24.7°                       Vertical: 16.6°



MK-Full Frame 50mm T2.1   Sample Pictures:

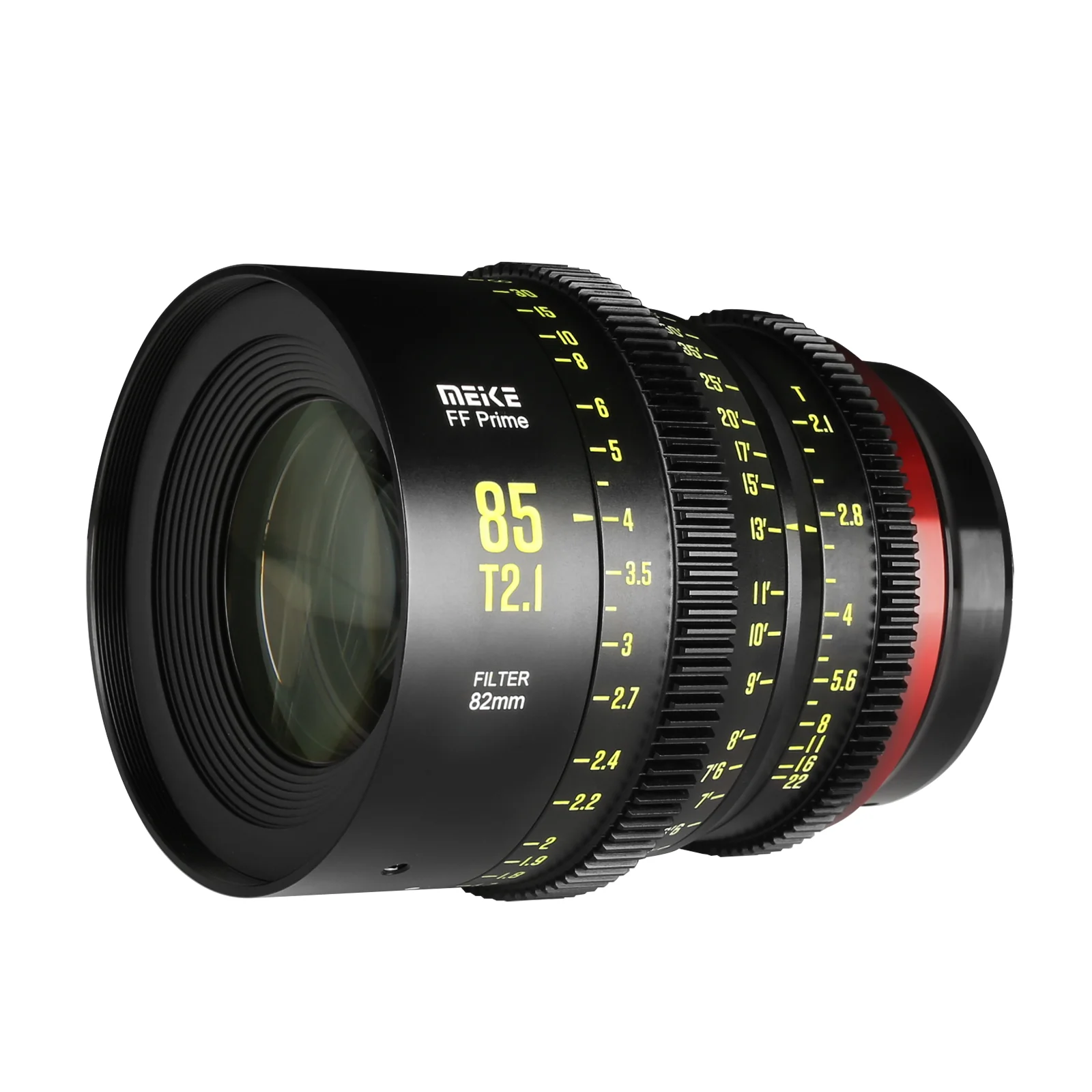

MK-Full Frame 85mm T2.1   Specifications:

Lens Mount:	PL/EF/RF/E
Min Focal Dist:	85cm
Filter Thread:	ø82
Outer Diameter：	85mm
Image Circle:	45mm
Structure:	14 Elements in 8 Groups
Focal Length:	85mm
Aperture Range:	T2.1-T22
Iris Blades:	11
Gear Mod:	M0.8
Focus Rotation:	330 Degree
Dimensions (Ø x L): PL:	ø89.6 × 102.5
EF(Canon):	ø89.6 × 110.5
RF(Canon):	ø89.6 × 134.5
E(Sony):	ø89.6 × 136.5
Weight:	1078~1152g

FOV:

on FF cameras:	on APS-C camera：
Diagonal:29.5°                                     Horizontal: 23.6°                        Vertical: 17.8°	Diagonal:19.2°                                      Horizontal: 15.3°                        Vertical: 11.5°



MK-Full Frame 85mm T2.1   Sample Pictures:

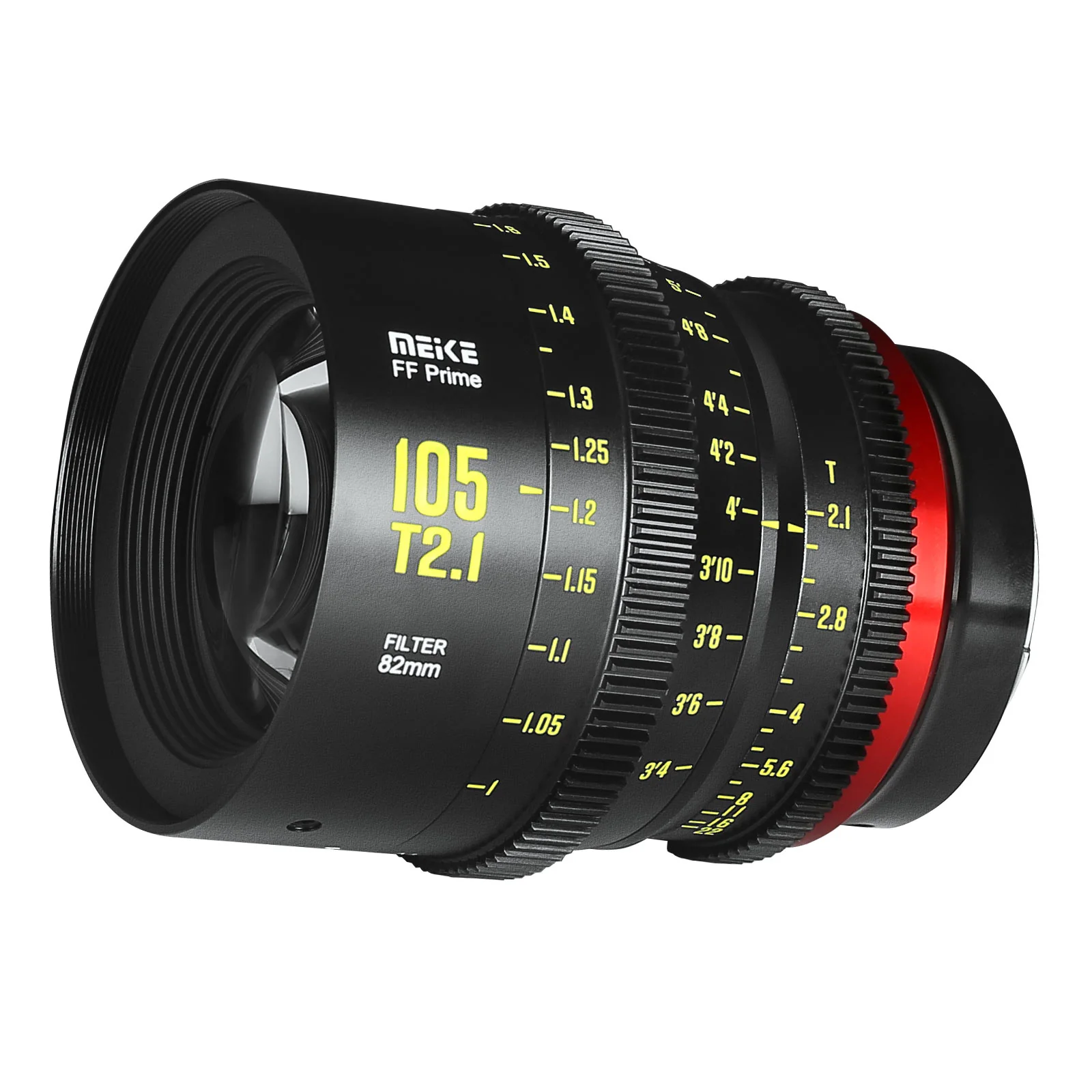

MK-Full Frame 105mm T2.1   Specifications:

Lens Mount:	PL/EF/RF/E
Min Focal Dist:	100cm
Filter Thread:	ø82
Outer Diameter：	ø85mm
Image Circle:	45mm
Structure:	11 Elements in 7 Groups
Focal Length:	105mm
Aperture Range:	T2.1-T22
Iris Blades:	11
Gear Mod:	M0.8
Focus Rotation:	330 Degree
Dimensions (Ø x L): PL:	ø89.6 × 102.5
EF(Canon):	ø89.6 × 110.5
RF(Canon):	ø89.6 × 134.5
E(Sony):	ø89.6 ×136.5
Weight:	988~1046g

FOV:

on FF cameras:	on APS-C camera：
Diagonal:23.6°                                     Horizontal: 19.7°                        Vertical: 13.2°	Diagonal:15.6°                                      Horizontal: 13°                        Vertical: 8.62°

MK-Full Frame 105mm T2.1   Sample Pictures:

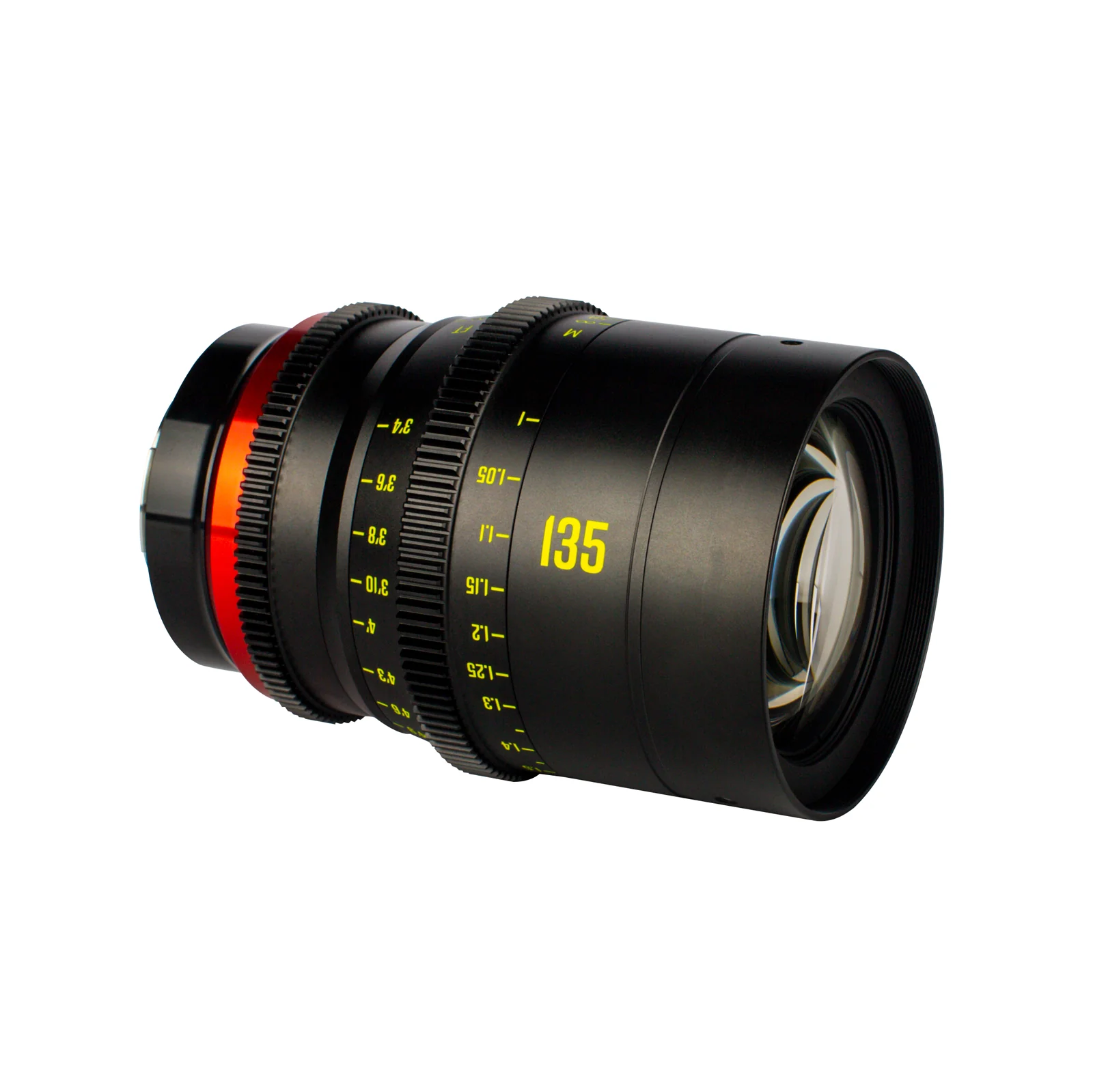

MK-Full Frame 135mm T2.4   Specifications:

Lens Mount:	PL/EF/RF/E
Min Focal Dist:	100cm
Filter Thread:	ø82
Outer Diameter：	ø85mm
Image Circle:	45mm
Structure:	12 Elements in 8 Groups
Focal Length:	135mm
Aperture Range:	T2.4-T22
Iris Blades:	17
Gear Mod:	M0.8
Focus Rotation:	330 Degree
Dimensions (Ø x L): PL:	ø89.6 × 102.5
EF(Canon):	ø89.6 × 110.5
RF(Canon):	ø89.6 × 134.5
E(Sony):	ø89.6 ×136.5
Weight:	988~1202g

FOV:

on FF cameras:	on APS-C camera：
Diagonal:18.5°                                     Horizontal: 15.4°                        Vertical: 10.3°	Diagonal:12.1°                                      Horizontal: 10.1°                        Vertical: 6.6°



MK-Full Frame 135mm T2.4   Sample Pictures:
